How to Annotate a 3D Model

How to Annotate a 3D Model

Overview: You can annotate on the placed 3D Model objects: any strings, sequential numbers, sequential alphabets, Names, or Instance Names.

Applies To: Canvas X3

Steps to Reproduce:
1. Open the 3D model using Place 3D Model from the properties bar.

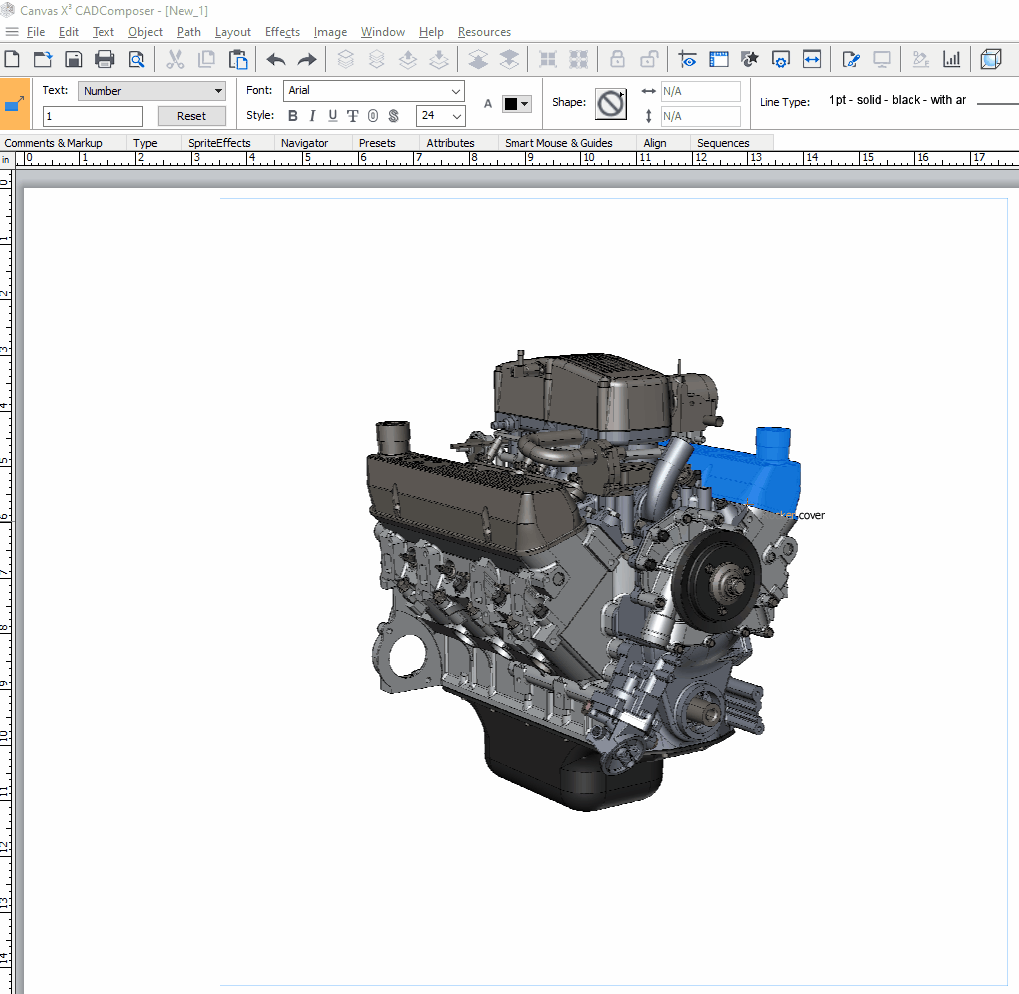

2. Click on your object then click annotate and select the parts you would like annotated.



*You can annotate by name, instance name, number, alphabetical, or custom text.
