How to Convert a Raster Image to a Vector using Auto Trace

How to Convert a Raster Image to a Vector using Auto Trace

Overview: You can use the Auto Trace command to create vector objects from an image. The Auto Trace command traces an entire image or channel of an image and is available when a paint object is selected.

Applies To: Canvas X, Canvas X Geo, Canvas X3, Canvas X Draw

Steps to Complete:

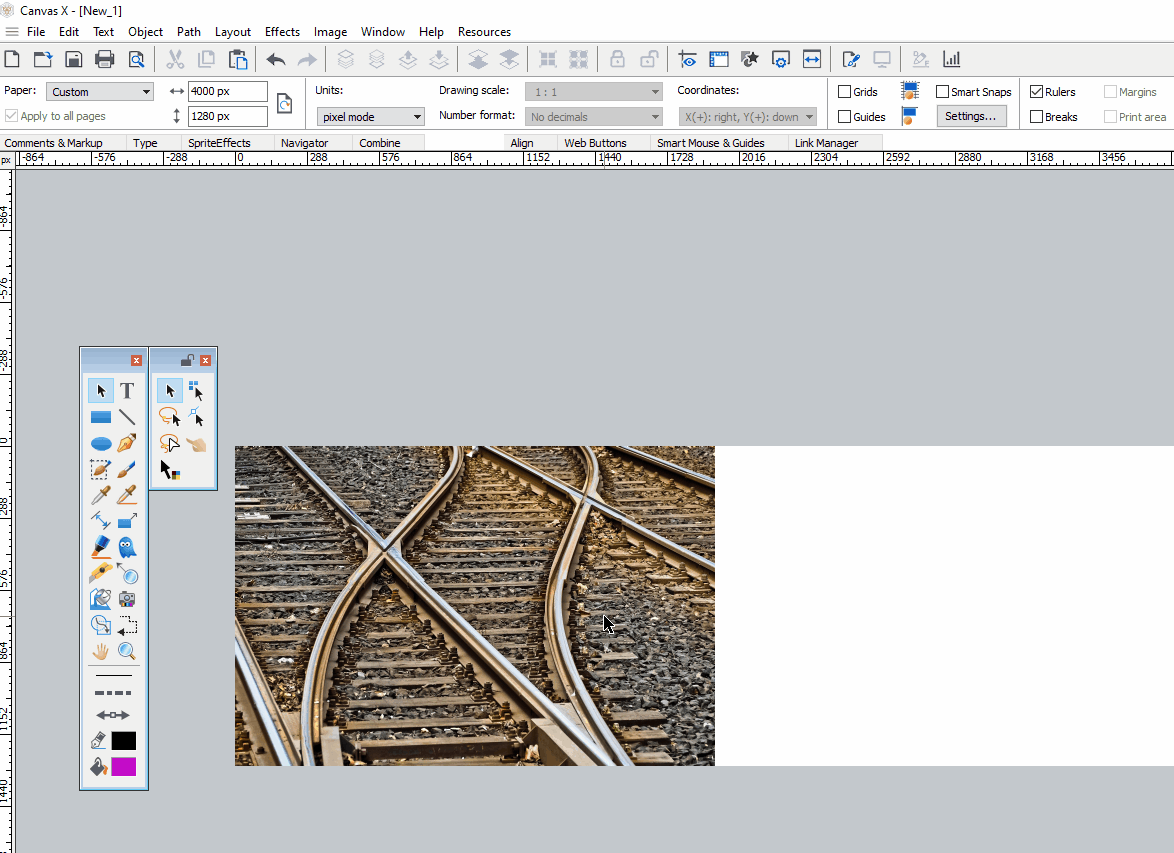

1. Select a paint object to trace and choose Image > Auto Trace.

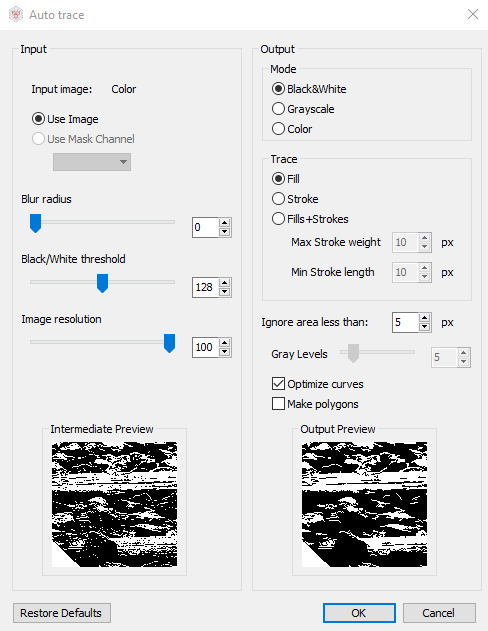

2. In the Auto Trace dialog box, choose either all channels or a specific color channel to trace from the Channel menu. The appropriate settings also depend on the type of image.

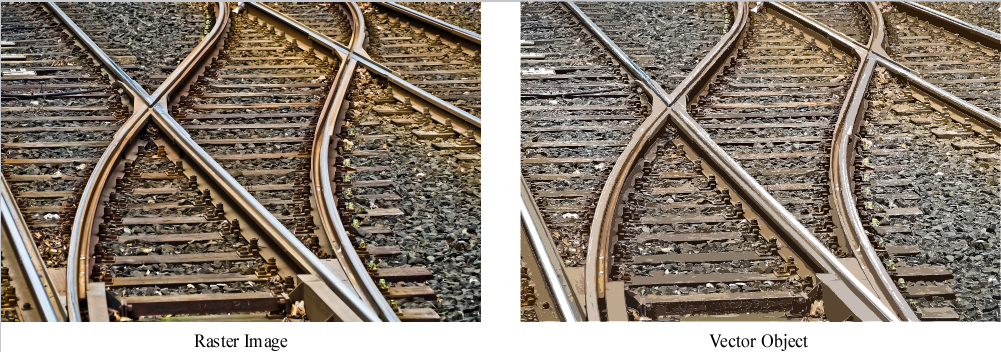

3. Click OK to create your vectored object.
